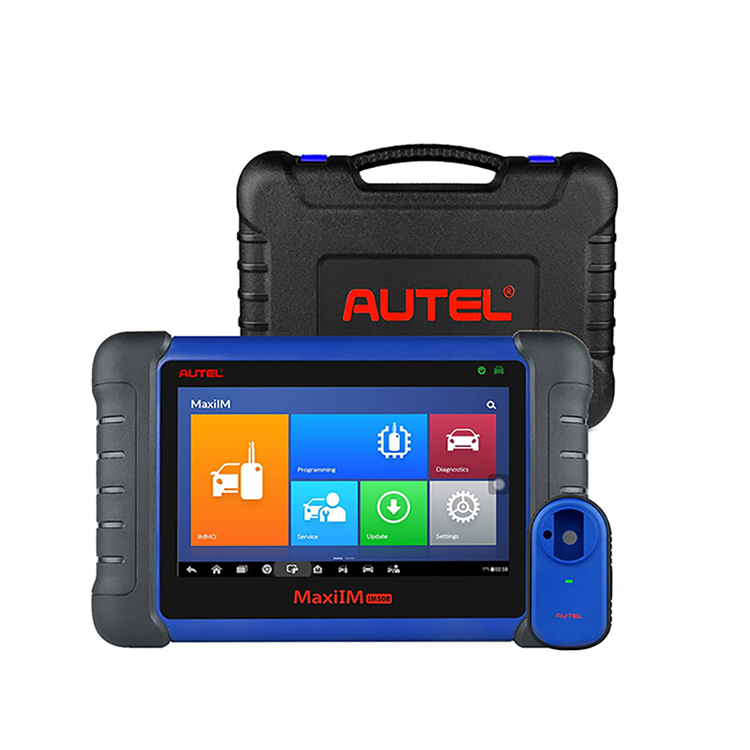

Image of Autel IM508 interface featuring a xp400 programmer and a hardcase

Autel MaxiIM IM508

Name: Autel MaxiIM IM508
Brand: AUTEL
Price: 849.0 USD
Availability: InStock

$999.00 $849.00

Tax included. Shipping calculated at checkout.

IM508 with XP200 Key Programmer is a 4-in-1 comprehensive automotive key programming tool that combines key programming, all systems diagnostics, and advanced service functions. It is a perfect solution for shops and technicians, who require IMMO and diagnostic services of the highest quality and at an affordable price. Autel IM508 is equipped with the same diagnostics & service features as Autel MX808/ MaxiCOM MK808/ MK808BT. Further, it is also capable of performing some special functions such as ABS Autobleed, Oil Reset, EPB, SAS Calibration, BMS, DPF, etc.

We are pleased to offer the convenience of accepting both credit cards and PayPal payments.

If you wish to use Visa, MasterCard, American Express, or Discover, kindly select 'More Payment Options' to enter the required information.

This will grant you access to the secure PayPal guest checkout page, where you can proceed with your credit card payment.

Please do not hesitate to contact us if you need assistance.

CLICK TO IDENTIFY WHAT OBD2 TOOLS WORK ON YOUR VEHICLE

If you have any questions please feel free to contact us support@toptoolonline.com.

WHERE DO OUR PRODUCTS SHIP FROM?

Thank you for visiting TopToolOnline!

We offer free shipping to most countries, but some remote areas or countries may require an additional shipping fee based on the package weight and delivery distance. Any applicable shipping charges will be clearly displayed at checkout before you complete your purchase.

Our products are shipped from multiple warehouses located around the world. We aim to ship from the warehouse closest to your delivery address to ensure fast delivery.

Note: If a product is out of stock in your nearest warehouse, your order will be shipped directly from our manufacturer in Shenzhen, China to avoid delays.

Listed below is the location of our warehouse and the estimated completion date.

Destination	Warehouse located	Estimated delivery time
North America	CA, US/NJ, US	3-5 Days
Europe	Germany	5-7 Days
UK	Leicestershire, UK	5-7 Days
Australia	Sydney, AU	5-7 Days
Other Countries	Hong Kong / Shenzhen, China	7-15 Days

Note: Delivery times may vary depending on your location and customs clearance procedures.

FAST SHIPPING

Orders are typically processed and shipped within 1-3 business days. Once your order is shipped, we will email you a tracking number so you can monitor your shipment in real time.

HASSEL-FREE RETURNS

Toptool provides 100% customer satisfaction on all of the products we sell. If you are not fully satisfied with a product you purchased directly from Toptool, We will accept a return within 30 days after the date on which delivery of the product is made to you. For more detailed information, please refer to our retrun and refund policy.

SHIPPING COVERAGE

We provide worldwide shipping to most countries and regions. However, please note that some remote or restricted areas are not eligible for delivery, or may require an additional shipping fee.

We currently ship to the following regions:

United States
Canada
Europe (including Germany, France, Italy, Spain, the Netherlands, etc.)
United Kingdom
Australia
Most countries in Asia
Selected countries in South America, Africa, and the Middle East

Restricted or unsupported regions: We do not ship to certain remote or embargoed regions. If your address is in a restricted area, we will notify you after your order is placed or you may see an error at checkout.

If you're unsure whether we ship to your location, please contact our support team (support@toptoolonline.com) before placing your order.

autel im508 key programmer

ADVANCED IMMO AND KEY PROGRAMMING

The XP200 key programmer provides a guided, interactive, and low-cost way to program without prior training or technical knowledge.

• Read PIN / CS (All Key Lost)
• Key Generation
• Key Learning / Remote Learning
• Backup / Restore IMMO data
• IMMO ECU Reset / Adaptation / Refresh / Coding
• Benz FEM/BDC Key Learning/ECU Adaptation,
• BMW CAS3/2 Key Learning,
• VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost
• Key Chip Read / Write

autel maxiim im508

Guided functions & advanced key learning

Different modes to assist technicians performing IMMO-related tasks, such as Key Learning, Remote Control Learning, Remote Control Add, etc.

Smart Mode: Guided and automated key learning for home mechanics.

Expert Mode: Advanced key learning for professionals

AUTEL MAXIIM COMPARISON CHART: IM508 VS IM608 VS IM608 PRO

Autel maxiim comparison chart im508 vs im608 vs im608 pro

Operating System: Android™ 4.4.4, KitKat

Processor: Cortex-A9 processor(1.6 GHz)

Memory: 32GB

Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution

Connectivity: Mini USB 2.0
USB2.0
Wi-Fi
Micro SD card slot(supports up to 32GB)

Sensors: Ambient light sensor for brightness auto changing

Power and Battery: 3.7 V/5000 mAh lithium-polymer batteryCharges via 5 VDC power supply

Tested Battery Life: Around 4.5 hours of continuous useBattery Charging Input: 5V/1.5A

Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V

Operating Temp: 0 to 50°C (32 to 122°F)

Storage Temp: -20 to 60°C (-4 to 140°F)

Operating Humidity: 5%-95% non-condensingNet

Weight: 885g(2.31|b.)

Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

• OE Level Diagnostics

• 80+ American, European and Asian vehicle makes

• Shop & Data Manager Apps

• Auto Search / VIN Finding

• Error Code Reading / Editing

• View Live Data Stream

Autel IM508 is equipped with the same diagnostics & service features as Autel MX808/ MaxiCOM MK808/ MK808BT. Further, it is also capable of performing some special functions such as ABS Autobleed, Oil Reset, EPB, SAS Calibration, BMS, DPF, etc.

• Oil Rest Service: - Reset the Engine Oil Life system, which calculates an optimal oil change interval based on driving conditions and climate.

• EPB Service - Perform regular maintenance on the electronic braking system, such as deactivating and activating the brake control system, controlling brake fluid, opening and closing brake pads, and adjusting brakes after disc or pad replacement, etc.

• SAS Service - Steering Angle Sensor Calibration stores current steering wheel position as straight-ahead position in EEPROM. The front wheels and steering wheel must be set to the straight-ahead position to ensure accurate calibration.

• TPMS Service - Identify the tire sensor IDs from the vehicle's ECU, replace and test its tire sensor.

• BMS Service - perform a battery test, monitor the close-circuit current, register the battery replacement, and activate the vehicle's rest state.

• DPF Service - perform DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacement of the engine control unit.

Different modes to assist technicians performing IMMO-related tasks, such as Key Learning, Remote Control Learning, Remote Control Add, etc.

Smart Mode: Guided and automated key learning for home mechanics.

Expert Mode: Advanced key learning for professionals

LANGUAGE SUPPORT: English / Portuguese / Germany / Japanese / French / Spanish

As IM508 is IP restricted, it can only be used in north and south America.

Autel IM508 key programming tool has the same IMMO functions and programming features as Autel IM608 when connected to XP400 key programmer (Purchase separately). It will be able to perform IMMO functions such as BMWCar CAS4 Key Learning，and programming functions such as IMMO ECU Read & Write, MC9S12 Encryption Chip Read & Write, IC Card Read & Write, Mercedes Infrared Key Read & Write, Remote Frequency Detect, and it will support PC connection. It comes with a 1-year free online update.
