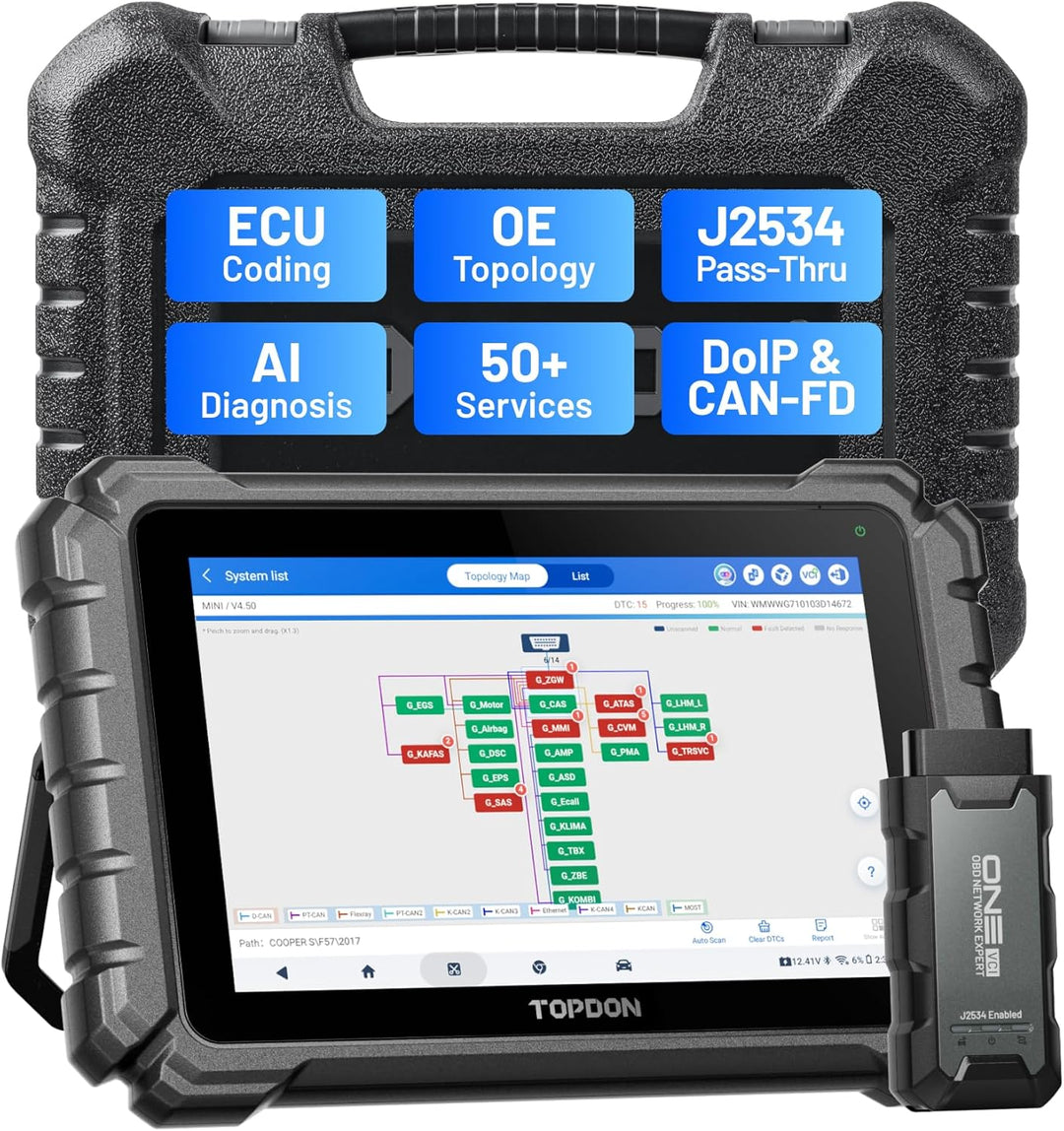

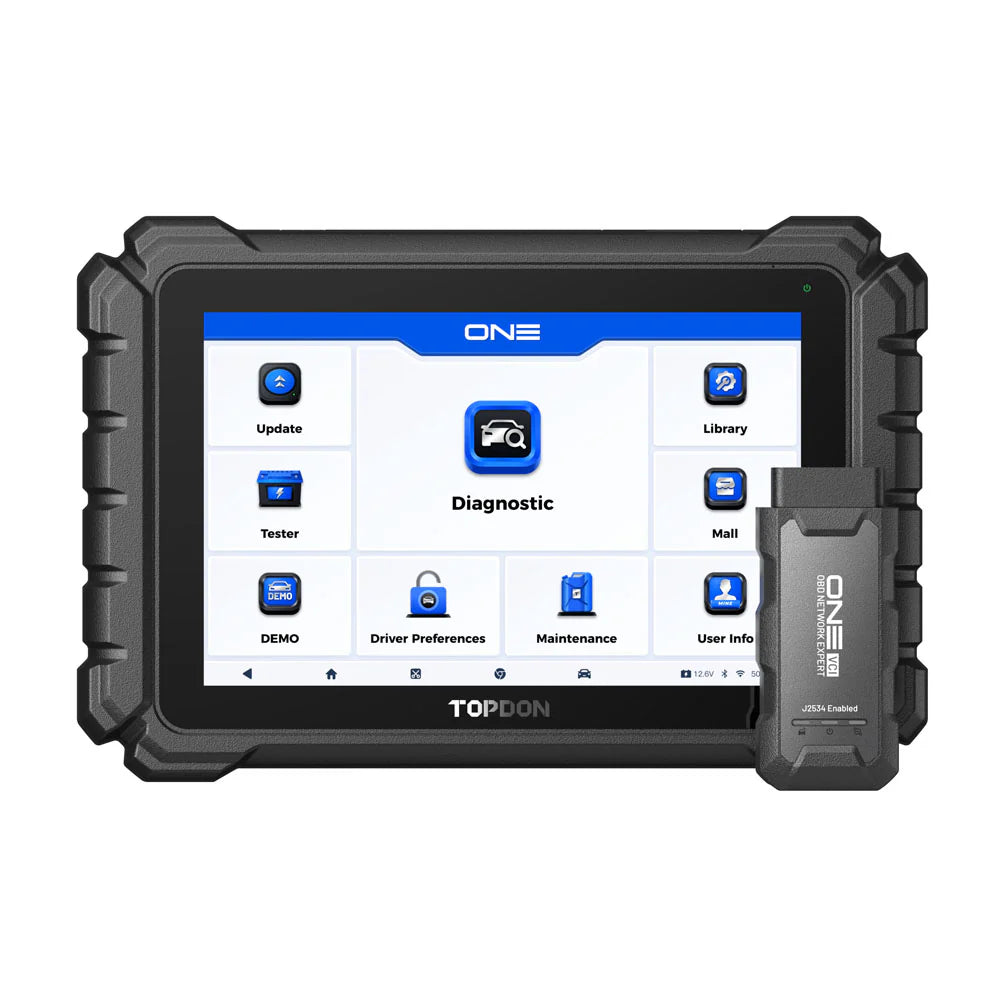

TOPDON ONE Professional Diagnostic Scanner

TOPDON ONE Professional Diagnostic Scanner

$749.00

税込み。配送はチェックアウト時に計算されます。

Ships from U.S. Warehouse

Free & Fast Delivery • 2–5 Business Days

30-Day Hassle-Free Returns

在庫あり、すぐに発送可能
入荷待ち、まもなく発送予定

ECU Coding & Hidden Feature Activation: Configure modules, match components, and enable advanced vehicle functions DEALER LEVEL

J2534 Pass-Thru Programming: Connect OEM software to perform dealer-level ECU programming

OE Topology Mapping: Visualize the vehicle network and quickly identify communication faults

Bidirectional Control (Active Tests): Command vehicle components to verify operation and locate faults

50+ Service Functions: Oil reset, EPB, DPF regeneration, TPMS reset, injector coding and more BEST VALUE

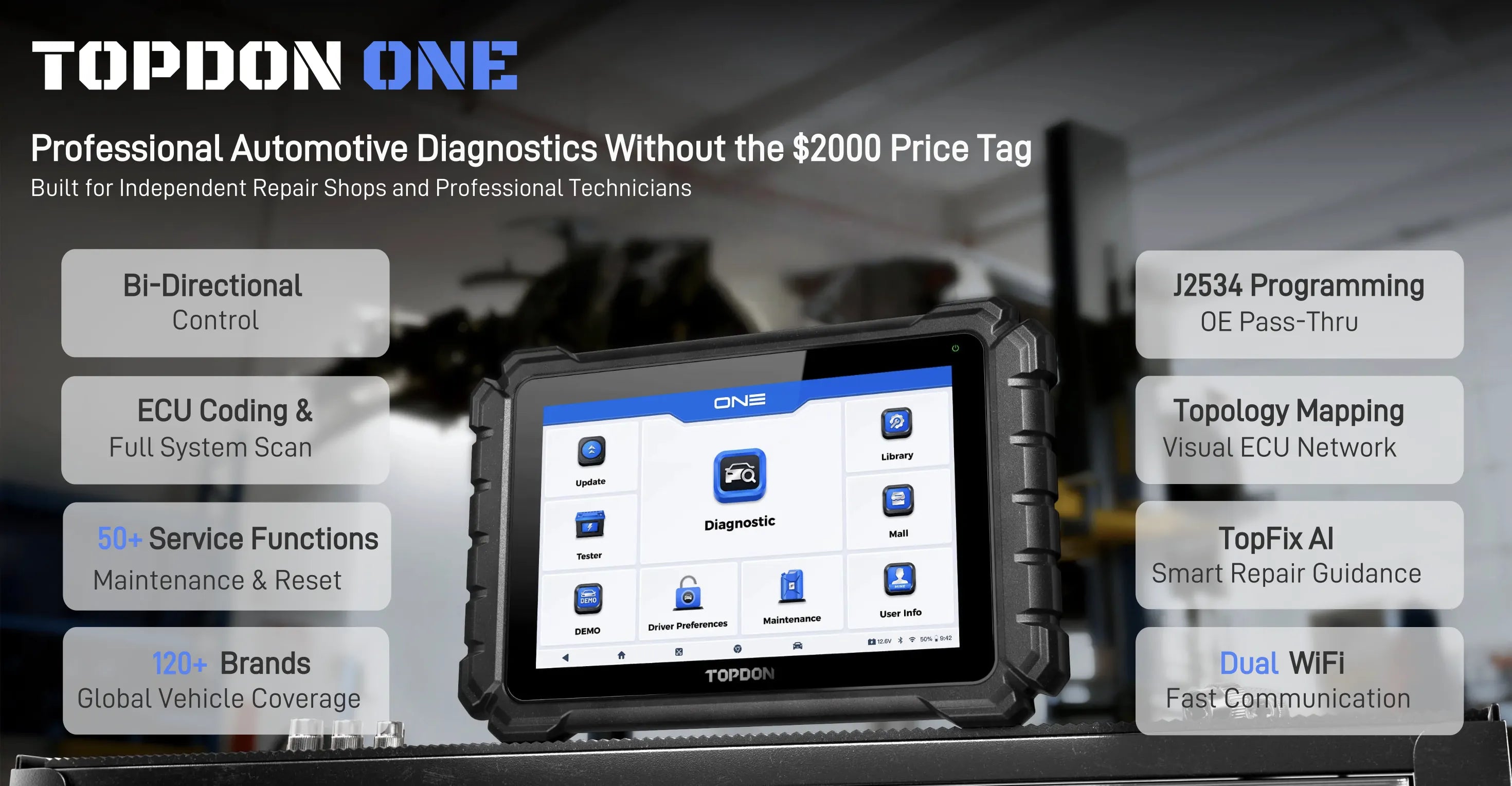

All-in-One Diagnostic Power for Modern Repair Shops

The TOPDON ONE combines rapid, accurate diagnostics with advanced capabilities typically found in dealer-level tools. With features such as bidirectional control, ECU coding, J2534 pass-thru programming, and OE-level topology mapping, technicians can diagnose, service, and repair modern vehicles more efficiently. By integrating diagnostics, coding, programming, and service functions into one powerful platform, the TOPDON ONE eliminates the need to switch between multiple tools during the repair process.

ECU Coding & Hidden Feature Activation

The TOPDON ONE gives technicians dealer-level control over ECU coding and module configuration. After replacing components, technicians can match new modules, initialize systems, and adjust vehicle settings to ensure proper operation.

For supported brands such as BMW, Mercedes-Benz, and Volkswagen, the tool also enables hidden feature activation and vehicle personalization, allowing workshops to customize functions and optimize vehicle performance.

J2534 Pass-Thru Programming

The TOPDON ONE supports J2534 pass-thru programming, allowing technicians to connect with OEM diagnostic software that supports the J2534 standard. This enables dealer-level ECU programming, module flashing, and software updates on supported vehicles.

Through TOPDON’s RLink platform, workshops can expand their in-house programming capability without investing in multiple factory scan tools.

OE-Level Topology Mapping

The TOPDON ONE features OE-level topology mapping, providing a visual overview of the vehicle’s ECU network. Technicians can easily see how control modules communicate and quickly identify modules with faults or communication issues.

By displaying the entire system architecture in a clear graphical layout, topology mapping helps technicians locate problems faster, diagnose complex CAN network issues, and streamline the diagnostic process.

Bidirectional Control (Active Tests)

The TOPDON ONE supports bidirectional control, allowing technicians to send commands directly to vehicle components and systems for active testing. Instead of only reading fault codes, technicians can activate functions such as cooling fans, fuel pumps, injectors, or EVAP valves to quickly verify whether components are working properly.

By interacting directly with vehicle systems, technicians can isolate faults faster and determine whether issues are caused by sensors, actuators, or control modules. This makes troubleshooting more efficient and helps reduce unnecessary parts replacement during the repair process.

50+ Professional Maintenance Functions

Supports the most commonly used resets, adaptations, and calibrations required in daily workshop operations.

Oil Reset

Service Lamp Reset

EPB Reset

Brake Service Mode

BMS Reset

Battery Registration

DPF Regen

Filter Regeneration

ABS Bleed

Brake System Bleeding

Injector Coding

Injector Calibration

SAS Reset

Steering Angle Cal.

TPMS Reset

Sensor Relearn

Additional Maintenance & Service Functions

Throttle Adaptation

AdBlue Reset

Gearbox Reset

Suspension Reset

AFS Headlamp

EGR Adaptation

NOx Sensor Reset

Clutch Matching

Turbo Matching

Power Balance

Sunroof Reset

Window Calibration

Airbag Reset

Stop/Start Reset

Coolant Bleed

Language Change

Transport Mode

Rain/Light Sensor

Seat Calibration

GPF Regeneration

Advanced Diagnostic Features

Security Gateway Access

Access SGW-protected vehicles including FCA, Nissan, Renault, and VAG platforms. Perform diagnostics, coding, and service functions on newer vehicles that require secure authentication.

TopFix AI Diagnostics

Built-in AI diagnostic assistance analyzes fault codes and provides possible causes, symptoms, and repair guidance, helping technicians troubleshoot problems faster.

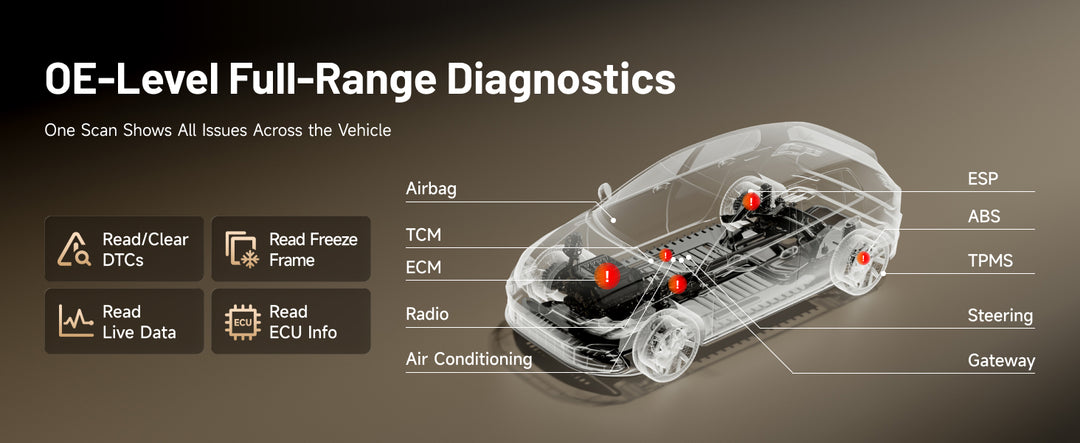

Full-System Diagnostics

Scan all available vehicle modules including engine, transmission, ABS, SRS, and body systems. Read and clear codes, view live data, and monitor system status across the entire vehicle.

VAG Guided Functions

Step-by-step guided procedures for Volkswagen and Audi vehicles provide clear instructions for complex operations such as adaptations, calibrations, and component replacements.

From Diagnosis to Repair — All in One Tool

Diagnose

Perform full-system scans across all vehicle modules and quickly identify fault codes and communication issues.

Test

Use live data and active tests to verify component operation and confirm the root cause of the problem.

Repair

Carry out service resets, coding, and calibration procedures to complete the repair efficiently

What's in the Box

TOPDON ONE Kit

★ TOPDON ONE Diagnostic Tablet

✓ Wireless VCI

✓ Charger

✓ Diagnostic Extension Cable

✓ USB-C to USB-C Cable

✓ USB-A to USB-C Cable

✓ Carrying Case

✓ Quick User Guide

✓ Packing List

TOPDON ONE Tablet

CPU

8-Core Processor
2.0 GHz

Memory
4 GB RAM

Storage
128 GB ROM

Display

10.1" LCD
1280 × 800

Battery

10,000 mAh
PD Fast Charging

Camera

16 MP
Rear Camera

Bluetooth

Bluetooth 5.0
10 m / 33 ft

Wi-Fi

Dual WiFi
2.4GHz / 5GHz

Operating System

Android 12
Closed System

Sensors

ALS / Temp
G-Sensor

Operating Temp

−10°C ~ 50°C
(14°F ~ 122°F)

Storage Temp

−20°C ~ 70°C

Dimensions

311 × 207 × 39 mm

Net Weight

1,574 g
(3.47 lb)

Multilingual Support (15 Languages)

English, French, German, Spanish, Portuguese, Russian, Japanese, Korean, Italian, Traditional Chinese, Simplified Chinese, Turkish, Polish, Serbian, Slovak

Wireless VCI CAN-FD / DoIP Ready

Supported Protocols

CAN-FD
DoIP
OBDII

Bluetooth

Bluetooth 5.0
10 m / 33 ft

Wi-Fi

AP Mode
2.4 GHz 802.11 b/g/n

Data Speed

2T2R
300 Mbps

Operating Temp

−10°C ~ 50°C

Storage Temp

−20°C ~ 70°C

Dimensions

114.8 × 51 × 29 mm

Net Weight

96 g
(3.39 oz)

2-Year Free Software Updates:

Instant Wi-Fi Updates: Enjoy 24 months of free, one-click software downloads. Stay current with the latest 2025 car models and new features.
Keep Working Forever: Unlike some competitors, your Phoenix Smart will NOT lock up after the free update period ends. You can continue to use the last downloaded software version indefinitely without paying a penny.

1-Year Manufacturer Warranty:

Official Protection: As an authorized Topdon dealer, we provide a full 1-year warranty covering the Phoenix Smart tablet and MDCI Pro VCI against any hardware defects.
Hassle-Free Service: If any hardware issues arise, our support team will guide you through the repair or replacement process quickly.

Lifetime Technical Support:

Real Expert Help: Get unlimited access to our professional technical support team via email or remote assistance.
We've Got Your Back: Whether you need help with a complex coding function or setting up the tool, we are here to support your business for the life of the machine.

Fast Shipping from Germany:

EU Local Warehouse: Your device ships directly from Germany.
Delivery Time: Expect delivery within 5-7 business days via DHL.

30-Day Money-Back Guarantee:

Risk-Free Buying: Not satisfied? You can return the device within 30 days of receipt for a refund or exchange (item must be in original condition).
Secure Packaging: Double-boxed with protective foam to ensure your Phoenix smart arrives in perfect condition.

Not sure if the Phoenix Smart supports a specific car model?

Check Compatibility Instantly:: 🔗 Check Topdon Coverage List Here

Personal Verification Service:

Can't find your car? Simply send us your VIN via Live Chat or Email.

Important: To get the most accurate answer, please also tell us the specific function you need to perform (e.g., "Online Coding," "Key Programming," or "AdBlue Reset").

Our engineers will verify the exact compatibility for your specific needs before you buy.
