Official FCA Secure Gateway Access
Direct Gateway Unlocking for 2017+ Models
The Phoenix Max provides authorized access to the Secure Gateway (SGW) on modern Fiat, Alfa Romeo, Jeep, Dodge, and Chrysler vehicles.
- Seamless European Access: Simply purchase your official European FCA account and log in directly on the tablet to unlock the gateway.
- No Device Binding Needed: Unlike other regions, European users do not need to bind the device serial number to their account. Just log in and start diagnosing immediately.
Note: For Maserati vehicles, a specific 12+8 bypass cable is required for gateway unlocking.
Remote Expert (Europe Exclusive)
Don't let complex coding jobs turn you away. By updating your Phoenix Max to the latest software (V1.2.8+), you gain instant access to Topdon’s European Remote Expert Network.
- Hire Local Pros: Post repair orders directly from the tablet.
- No IP Blocking: This is the official EU version, fully supported across the continent.
Dual-Mode Flexibility: Speed Meets Depth
Cloud Programming ｜Cloud-Based Efficiency
ideal for daily repairs. Automatically download the latest software files from the server for rapid module coding on Mercedes-Benz, BMW, VW/Audi/Skoda/Seat, Porsche, and Land Rover. No manual file search required.
J2534 Pass-Thru ｜OEM-Level Depth
When the job demands factory intervention, the MDCI Pro VCI acts as a J2534 pass-thru gateway. Connect to a laptop running official OEM software to perform authorized programming, SCN coding, and firmware updates just like the dealer.

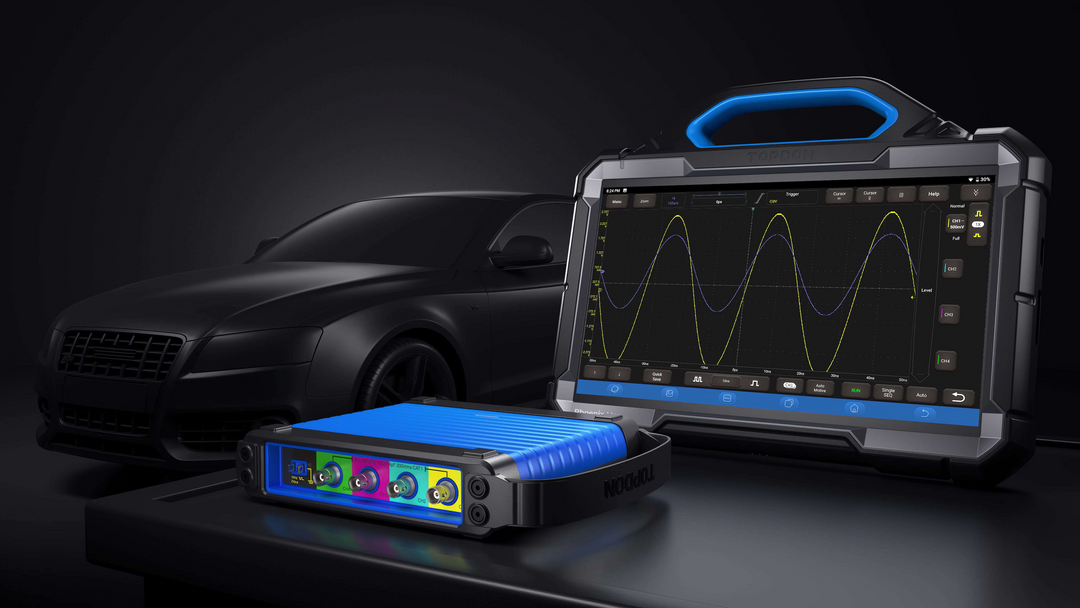

EXPANDABLE WITH PHOENIX SCOPE
Transform Your Tablet into a Lab Scope.
The Phoenix Max is engineered to integrate seamlessly with the optional Phoenix Scope attachment.
- See the Invisible: Analyze complex electrical signals, sensors, and ignition waveforms directly on the 13.3" screen.
- Precision Control: Color-coded channels and touch adjustments allow for deep signal analysis.
(Select the 'Master Bundle' or purchase the Phoenix Scope separately to unlock this feature).
Topology Mapping 2.0
Visualizes the entire vehicle network in a color-coded tree structure. Locate communication faults instantly.
Protocols: DoIP & CAN FD
Future-proof your shop with the included Phoenix MDCI Pro. It supports J2534, DoIP, CAN FD, D-PDU, and RP1210.

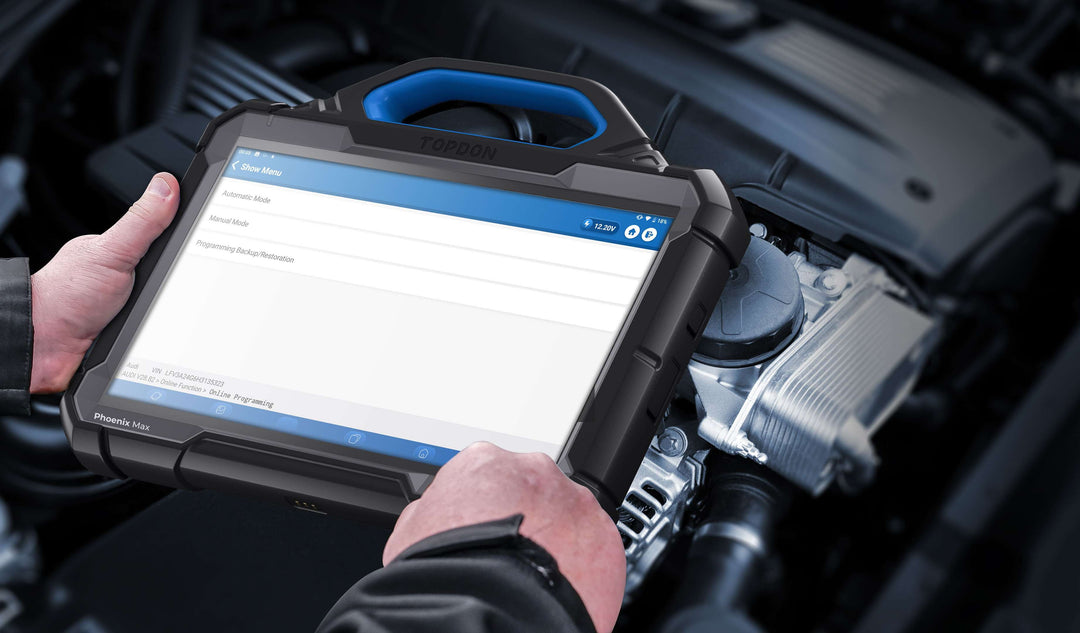

VAG Guided Functions
Expertise built-in. Skip the security access codes and channel numbers for VW, Audi, Skoda, and Seat. The tool provides step-by-step on-screen guidance for complex calibrations.
BUILD YOUR DIAGNOSTIC LAB
The Phoenix Max is the center of a complete workshop solution. Scale your capabilities with professional add-ons:
- Battery Testing: Integrated with BTMobile ProS for precise battery & charging system analysis.
- Key Programming: Connect the T-Ninja Box for advanced ECU unlocking and key cloning.
- ADAS Calibration: Fully compatible with Topdon’s Phoenix ADAS Mobile frames.
- EV & Heavy Duty: Expand software to cover New Energy and 24V commercial vehicles.
(Add-ons sold separately).

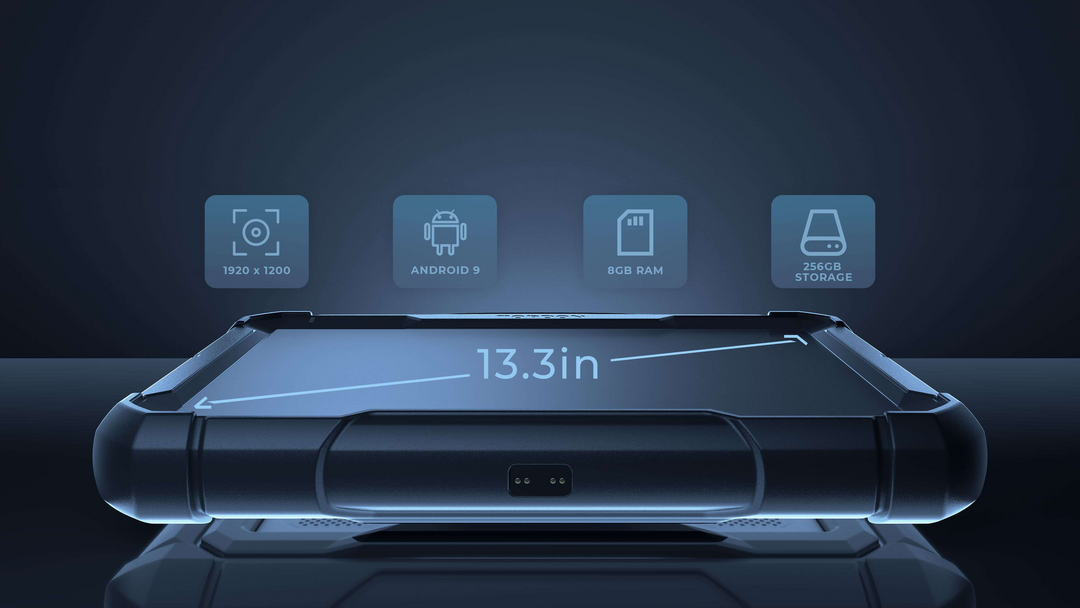

SEE MORE. DO MORE.
The 13.3-Inch Definition Display (1920 x 1200) is the largest screen in the Phoenix family.
- Visual Clarity: View complex wiring diagrams and topology maps clearly without constant zooming.
- Powerhouse Specs: Powered by Android 9, an 8-Core Processor, and 8GB RAM + 256GB Storage for instant response.
- All-Day Battery: A massive 18,600 mAh battery keeps you working from morning to night.
Topdon Phoenix Max
Display: LCD 13.3 inches, 1920 x 1200 pixels
CPU: 8-Core Processor, 2.0 GHz, Android 9.0
RAM: 8GROM: 256G
Battery: 18600 mAh / 3.8V
Operating Voltage: 9~18V
Storage Temperature: -20℃~60℃（-4℉~140℉）
Working Temperature: 0℃~50℃（32℉~122℉）
Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)
Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)
Net Weight: 3.18kg(7.0 lb)
Multilingual Support: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian
--------------------------------------------------------------------------------------------

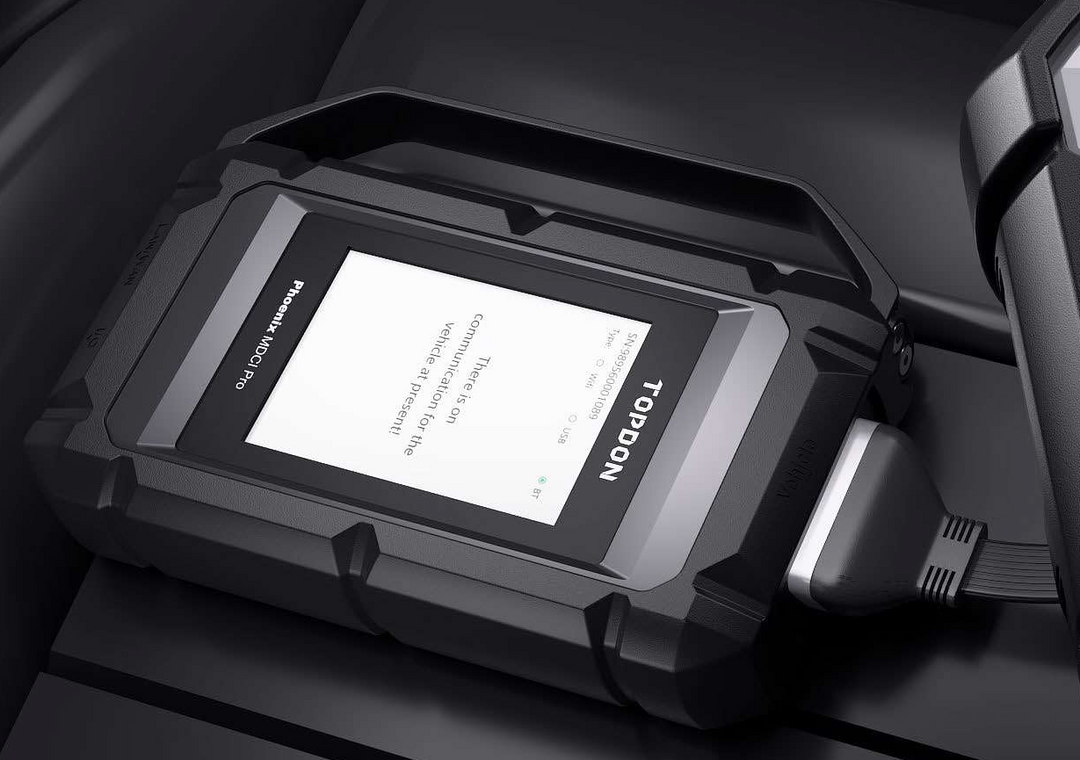

MDCI PRO
CPU: Cortex-A7 + Cortex-M7, Dual Processor
Operating System: LinuxRAM: 256M
ROM: 8G
Display: TFT, 3.97 inches, 320 x 480 pixels
Wi-Fi: 2.4GHz/5GHz, Dual Band
Working Temperature: 0℃~50℃（32℉~122℉）
Operating Voltage: DC 9~36 VDimensions: 196 x 135 x 42.8 mm（7.72 x 5.31 x 1.69'')
New Protocols Supported: J2534, CAN FD, DOIP, D-PDU, RP1210
Core Device:
- 1x Phoenix Max Tablet (13.3-inch)
- 1x Phoenix MDCI Pro VCI (Supports J2534, DoIP, CAN FD)
Cables & Power:
- 1x OBDII Extension Cable
- 1x Type-C to USB Data Cable
- 1x Power Adapter (Includes EU/UK/US Plugs)
- 1x Cigarette Lighter Cable
- 1x Battery Clamps (Fused)
Adapters & Accessories:
- 1x OBDI Adapter Box (Full Set of Non-OBDII Connectors for older models)
- 1x User Manual & Password Envelope
- 1x Heavy-Duty Hard Shell Carrying Case
(Note: Oscilloscope, EV Package, and T-Ninja Box are optional add-ons and sold separately).
2-Year Free Software Updates:
- Instant Wi-Fi Updates: Enjoy 24 months of free, one-click software downloads. Stay current with the latest 2024-2025 car models and new features.
- Keep Working Forever: Unlike some competitors, your Phoenix Max will NOT lock up after the free update period ends. You can continue to use the last downloaded software version indefinitely without paying a penny.
1-Year Manufacturer Warranty:
- Official Protection: As an authorized Topdon dealer, we provide a full 1-year warranty covering the Phoenix Max tablet and MDCI Pro VCI against any hardware defects.
- Hassle-Free Service: If any hardware issues arise, our support team will guide you through the repair or replacement process quickly.
Lifetime Technical Support:
- Real Expert Help: Get unlimited access to our professional technical support team via email or remote assistance.
- We've Got Your Back: Whether you need help with a complex coding function or setting up the tool, we are here to support your business for the life of the machine.
Fast Shipping from Germany:
- Local Warehouse: Your device ships directly from our German warehouse.
- Delivery Time: Expect delivery within 5-7 business days via DHL or GLS.(Germany: 1-3 Days)(Rest of EU: 5-7Days)
30-Day Money-Back Guarantee:
- Risk-Free Buying: Not satisfied? You can return the device within 30 days of receipt for a refund or exchange (item must be in original condition).
- Secure Packaging: Double-boxed with protective foam to ensure your Phoenix Max arrives in perfect condition.
Not sure if the Phoenix Max supports a specific car model?
Check Compatibility Instantly:: 🔗 Check Topdon Coverage List Here
Personal Verification Service:
Can't find your car? Simply send us your VIN via Live Chat or Email.
Important: To get the most accurate answer, please also tell us the specific function you need to perform (e.g., "Online Coding," "Key Programming," or "AdBlue Reset").
Our engineers will verify the exact compatibility for your specific needs before you buy.
CERTIFICATO DI AUTORIZZAZIONE UFFICIALE
METODO 1: VERIFICA IL NOSTRO STATO DI RIVENDITORE
Siamo un distributore ufficiale Topdon rigorosamente selezionato. Puoi verificare il nostro stato di autorizzazione direttamente sul sito Topdon utilizzando il nostro codice rivenditore unico.
Come verificare:
-
Copia il Numero del Certificato di Autorizzazione dall'immagine del certificato sopra (Codice: TP2558486943).
-
Visita la Pagina di Verifica Rivenditori Autorizzati Topdon.
-
Incolla il codice e cerca. Vedrai il nostro record ufficiale come mostrato di seguito:
METODO 2: VERIFICA L'AUTENTICITÀ DEL PRODOTTO (CONTROLLO SN)
Garantiamo che ogni dispositivo venduto su Toptool sia Nuovo di Fabbrica e Originale. Ogni unità è dotata di un Numero di Serie (SN) unico sul retro.
Come verificare il tuo dispositivo:
-
Trova il codice SN sul retro della tua macchina.
-
Visita la Pagina di Verifica dell'Autenticità del Prodotto Topdon.
-
Inserisci il tuo SN per confermare che si tratta di un'unità genuina destinata alla tua regione. (Nota: le unità contraffatte o del mercato grigio non supereranno questo controllo e non potranno essere registrate).
